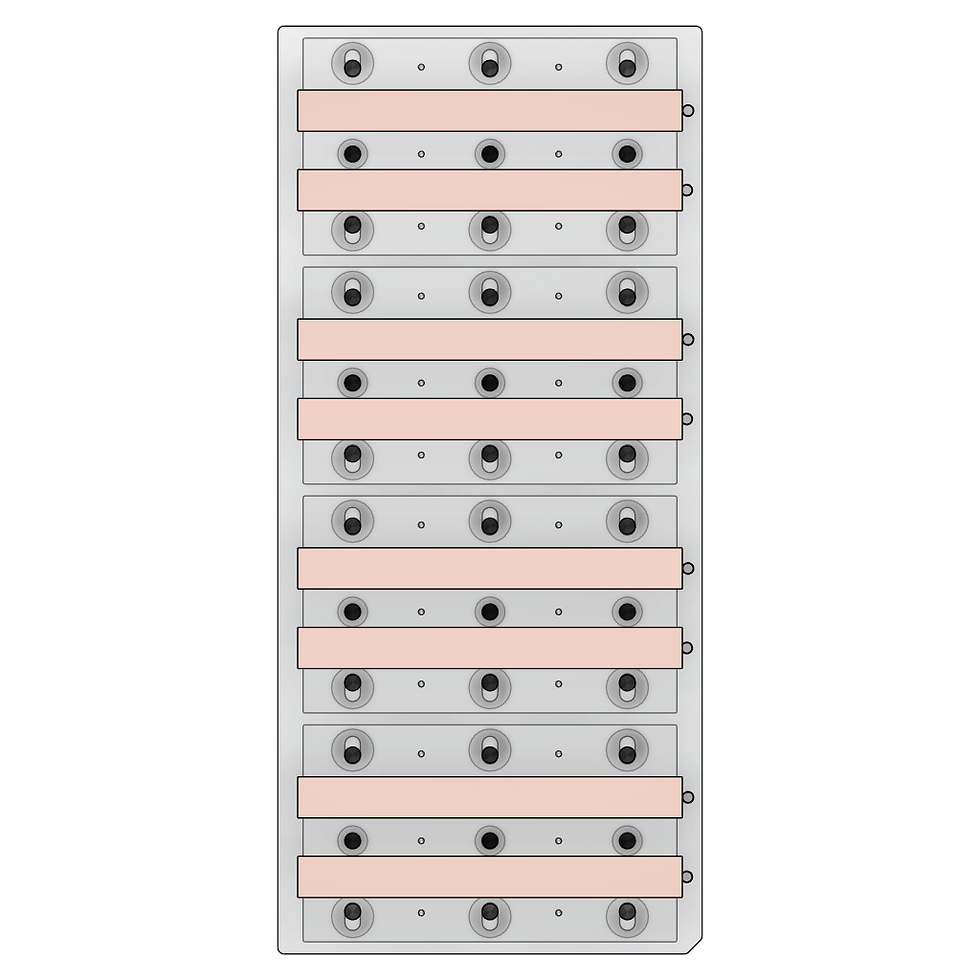

The perfect companion for high density work holding.
Made from 4140PH (28-32HRC)
Machine in place to create durable and accurate "soft" jaws
Secure with the included 1/4-20 flat head screws
Recommended torque: 6-9ft-lbs into aluminum fixture. 9-12ft-lbs into helical inserts.
Consider balancing the clamping forces by using a moveable rail on each side of the fixed rail

Setup Instructions:
To machine the fixed rails, pin in place using the included 3/32" dowel pins and secure with the 1/4-20 flat head fasteners. Drill 2.38mm holes in your fixture to accept the included 3/32" dowel pins.

Recommended tooling:
Nachi 3/32", 2.38mm Drill (EDP# 1245365)

Speeds & Feeds:
Drilling aluminum - 125SFM (5093RPM), 0.0014" IPR, 7.1 IPM

Pair with the Mojo Grip - Moveable Rail Blank - 1/4-20
